Simulation Grids

PyPIC3D builds structured 3D grids during initialization and stores them in world['grids'].

Grid Construction

By default, initialization builds a Yee-style pair of grids:

  • world['grids']['center']: collocated/base index grid with one ghost cell on each side

  • world['grids']['vertex']: staggered half-cell grid with one ghost cell on each side

These are generated from Nx, Ny, Nz and x_wind, y_wind, z_wind.

The field components follow the legacy PyPIC3D Yee placement. Electric current and electric field components use the vertex grid along their component axis and the center grid along transverse axes. Magnetic field components use the center grid along their component axis and the vertex grid along transverse axes. For example, Ex and Jx live on (vertex_x, center_y, center_z), while Bx lives on (center_x, vertex_y, vertex_z).

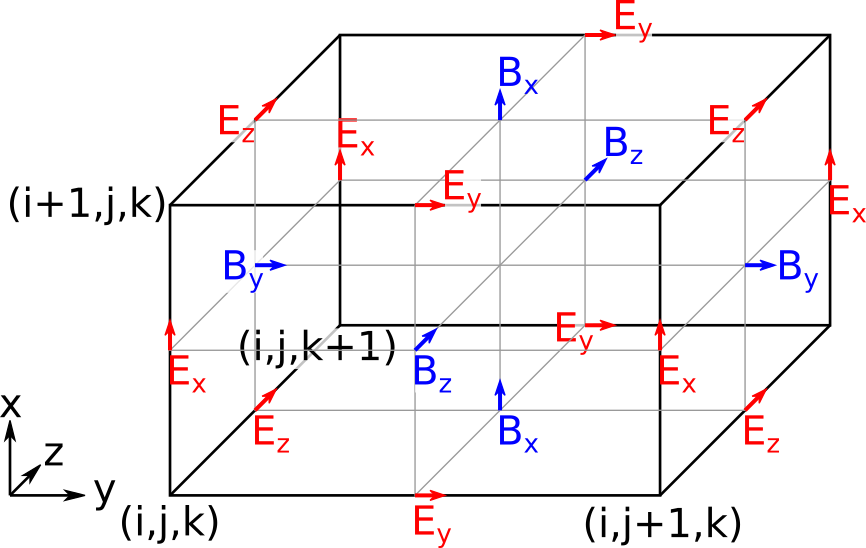

Yee grid staggering

Boundary Encoding

Field boundary conditions are stored in world['boundary_conditions'] as integer codes for JAX-safe usage:

  • 0: periodic

  • 1: conducting

Dimensionality Handling

PyPIC3D supports effectively 1D/2D/3D runs by setting inactive dimensions to a single cell (for example Ny = 1). Deposition and solver routines infer active dimensions from array shapes.
